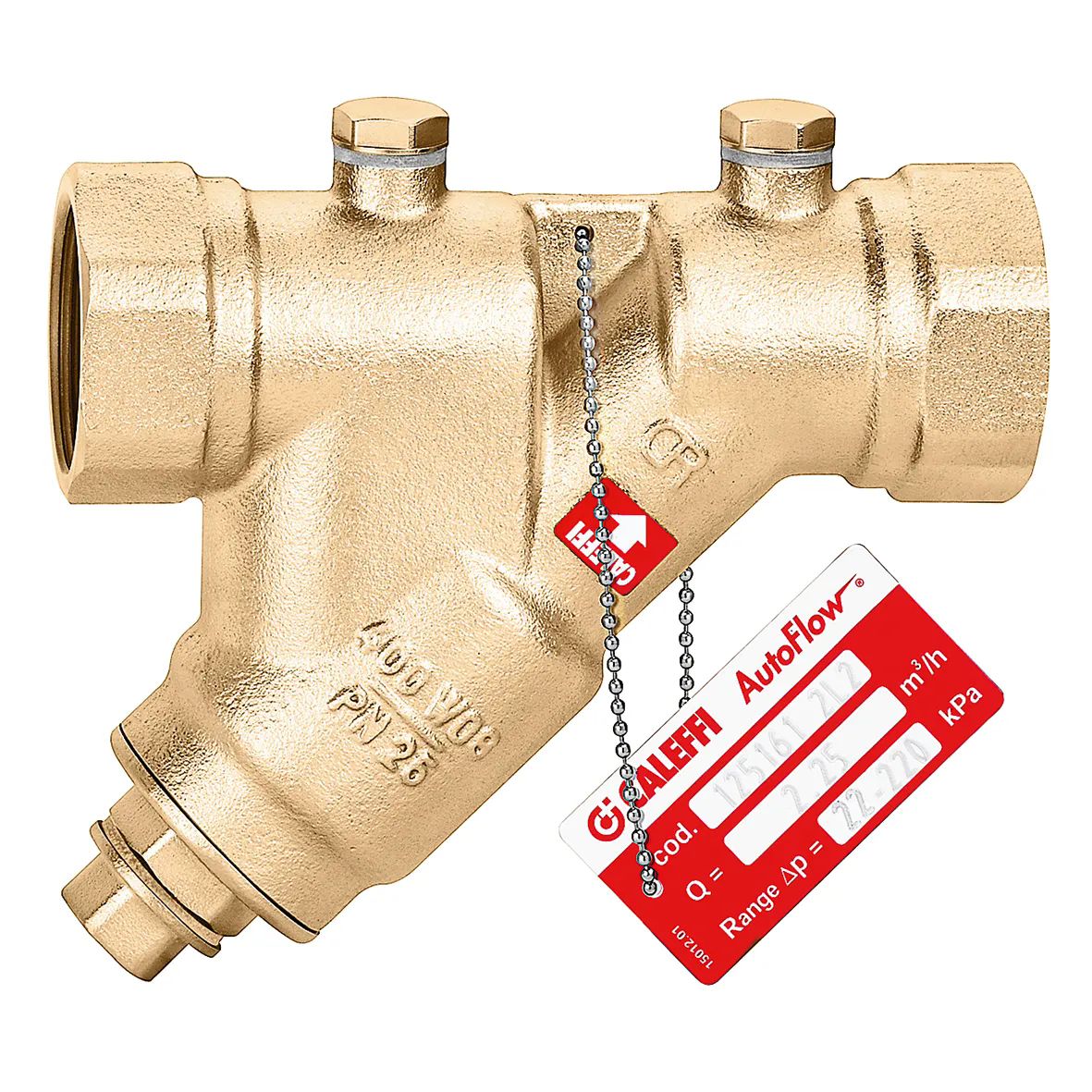

AUTOFLOW，带不锈钢阀芯的动态流量平衡阀。
pdf

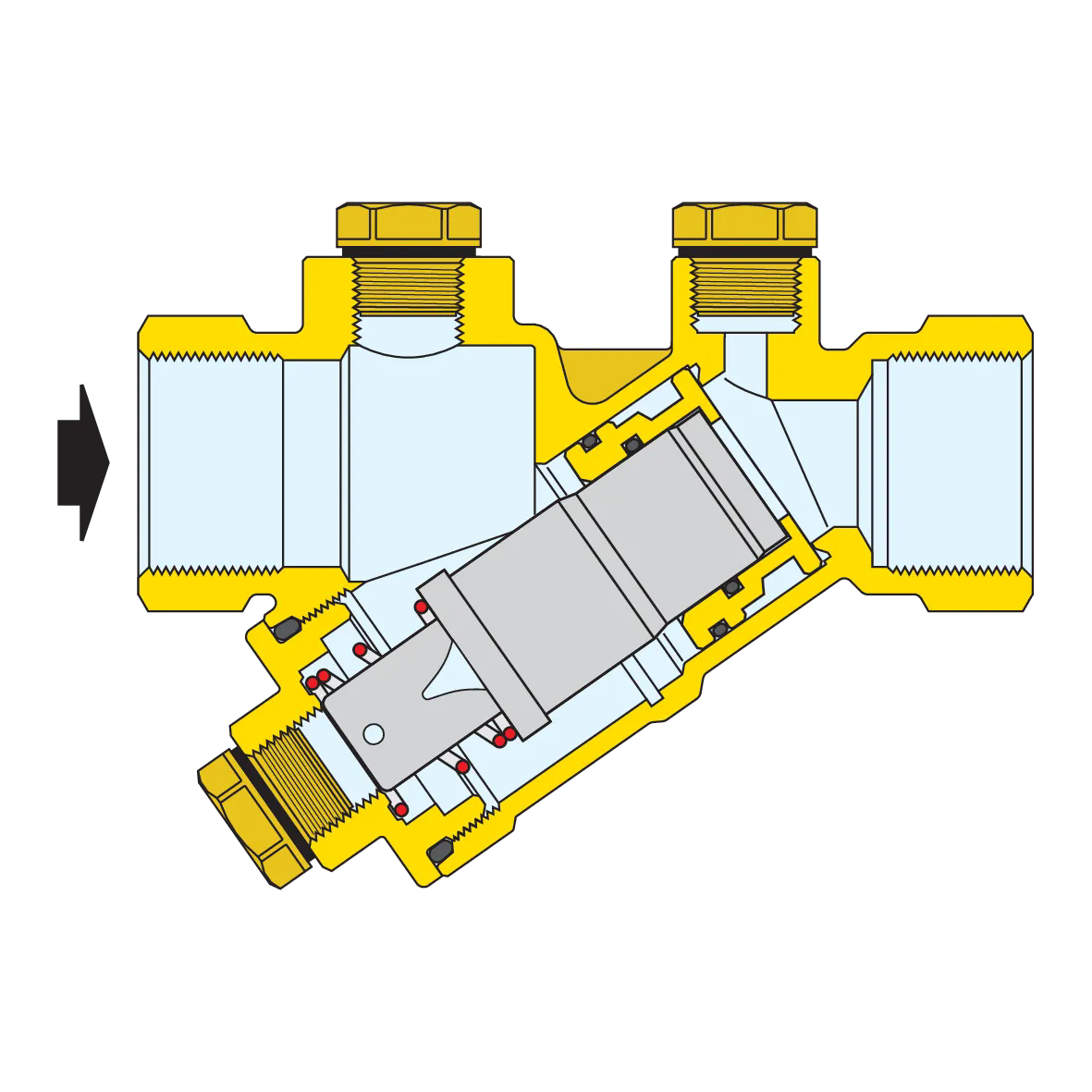

图纸和规范
| 编号 | 口径 | 备注 | Kv |
|---|---|---|---|
| 125141*** (10–95 kPa) | G 1/2" (ISO 228-1) F | 0.3; 0.45; 0.5; 0.6; 0.7; 0.8; 0.9; 1.0 | 6.69 m³/h |
|
|
|
||
| 125151*** (10–95 kPa) | G 3/4" (ISO 228-1) F | 0.3; 0.45; 0.5; 0.6; 0.7; 0.8; 0.9; 1.0 | 7.58 m³/h |
|
|
|
||
| 125161*** (10–95 kPa) | G 1" (ISO 228-1) F | 0.7; 0.8; 0.9; 1.0 | 13.42 m³/h |
|
|
|
||
| 125171*** (10–95 kPa) | G 1 1/4" (ISO 228-1) F | 0.7; 0.8; 0.9; 1.0 | 13.26 m³/h |
|
|
|
||
| 125181*** (10–95 kPa) | G 1 1/2" (ISO 228-1) F | 2.75; 3.0; 3.25; 3.5; 3.75; 4.25; 5.0; 7.0 | 34.72 m³/h |
|
|
|
||
|
3D models
产品概述
卡莱菲，125181*** (10–95 kPa)， AUTOFLOW®。动态流量平衡阀。不锈钢阀芯。精确度：± 5 %。带压差检测口及泄水口。口径: G 1 1/2" (ISO 228-1) F。 耐压: 25 bar。耐温: -20–110 °C。乙二醇最大比例: 50 % 。适用介质：水、乙二醇溶液。Kv: 34.72 m³/h。阀体: 防脱锌铜合金 DR。
|
|||
| 125191*** (10–95 kPa) | G 2" (ISO 228-1) F | 2.75; 3.0; 3.25; 3.5; 3.75; 4.25; 5.0; 7.0 | 37.38 m³/h |
|
|
|
||
|
3D models
产品概述
卡莱菲，125191*** (10–95 kPa)， AUTOFLOW®。动态流量平衡阀。不锈钢阀芯。精确度：± 5 %。带压差检测口及泄水口。口径: G 2" (ISO 228-1) F。 耐压: 25 bar。耐温: -20–110 °C。乙二醇最大比例: 50 % 。适用介质：水、乙二醇溶液。Kv: 37.38 m³/h。阀体: 防脱锌铜合金 DR。
|
|||
| 125141*** (22–210 kPa) | G 1/2" (ISO 228-1) F | 0.12; 0.15; 0.2; 0.25; 0.35; 0.4; 0.6; 0.7; 0.8; 0.9; 1.2; 1.4; 1.6; 1.8 | 6.69 m³/h |
|
|
|
||
| 125151*** (22–210 kPa) | G 3/4" (ISO 228-1) F | 0.12; 0.15; 0.2; 0.25; 0.35; 0.4; 0.6; 0.7; 0.8; 0.9; 1.2; 1.4; 1.6; 1.8 | $$ data missing $$ |
|
|
|
||
| 125161*** (22–210 kPa) | G 1" (ISO 228-1) F | 1.0; 1.2; 1.4; 1.6; 1.8; 2.0; 2.25; 2.5; 2.75; 3.0; 3.25; 3.5; 3.75; 4.0; 4.25 | $$ data missing $$ |
|
|
|
||
| 125171*** (22–210 kPa) | G 1 1/4" (ISO 228-1) F | 1.0; 1.2; 1.4; 1.6; 1.8; 2.0; 2.25; 2.5; 2.75; 3.0; 3.25; 3.5; 3.75; 4.0; 4.25 | $$ data missing $$ |
|
|
|
||
| 125181*** (22–210 kPa) | G 1 1/2" (ISO 228-1) F | 4.0; 4.5; 5.5; 6.0; 6.5; 7.5; 8.0; 8.5; 9.0; 9.5; 10.0; 11.0 | 34.72 m³/h |
|
|
|
||
| 125191*** (22–210 kPa) | G 2" (ISO 228-1) F | 4.0; 4.5; 5.5; 6.0; 6.5; 7.5; 8.0; 8.5; 9.0; 9.5; 10.0; 11.0 | 37.38 m³/h |
|
|
|
||
| 125101*** (22–210 kPa) | G 2 1/2" (ISO 228-1) F | 9.0; 9.5; 10.0; 11.0; 12.0; 13.5; 14.5; 15.5; 16.5; 17.0 | $$ data missing $$ |
|
|
|
||
| 125141*** (40–390 kPa) | G 1/2" (ISO 228-1) F | 0.25; 0.35; 0.45; 0.7; 0.9; 1.1; 1.4; 1.6; 1.8; 2.1; 2.25; 2.5; 2.75 | 6.69 m³/h |
|
|
|
||
| 125151*** (40–390 kPa) | G 3/4" (ISO 228-1) F | 0.25; 0.35; 0.45; 0.7; 0.9; 1.1; 1.4; 1.6; 1.8; 2.1; 2.25; 2.5; 2.75 | 7.58 m³/h |
|
|
|
||
| 125161*** (40–390 kPa) | G 1" (ISO 228-1) F | 2.5; 2.75; 3.0; 3.25; 3.5; 3.75; 4.0; 4.25; 4.5; 5.0; 5.5; 6.0 | 13.42 m³/h |
|
|
|
||
| 125171*** (40–390 kPa) | G 1 1/4" (ISO 228-1) F | 2.5; 2.75; 3.0; 3.25; 3.5; 3.75; 4.0; 4.25; 4.5; 5.0; 5.5; 6.0 | 13.26 m³/h |
|
|
|
||
| 125181*** (40–390 kPa) | G 1 1/2" (ISO 228-1) F | 3.0; 3.25; 3.5; 3.75; 4.0; 4.25; 4.5; 6.5; 7.0; 7.5; 8.0; 8.5; 9.0; 10.0; 11.0; 12.0; 13.0; 14.5; 15.5 | $$ data missing $$ |
|
|
|
||
| 125191*** (40–390 kPa) | G 2" (ISO 228-1) F | 3.0; 3.25; 3.5; 3.75; 4.0; 4.25; 4.5; 6.5; 7.0; 7.5; 8.0; 8.5; 9.0; 10.0; 11.0; 12.0; 13.0; 14.5; 15.5 | 37.38 m³/h |
|
|
|
||
| 125101*** (40–390 kPa) | G 2 1/2" (ISO 228-1) F | 6.5; 7.0; 7.5; 8.0; 8.5; 9.0; 11.0; 18.0; 19.0; 20.0; 21.0; 22.0 | 75.82 m³/h |
|
|
|
||
