普通型安全阀，内螺
pdf
图纸和规范
| 编号 | 口径 | 泄水接口 | 设定压力 |
|---|---|---|---|
| 311415 | G 1/2" (ISO 228-1) F | G 1/2" (ISO 228-1) F | 1.5 bar |
|
|
|
||
| 311425 | G 1/2" (ISO 228-1) F | G 1/2" (ISO 228-1) F | 2.5 bar |
|
|
|
||
| 311430 | G 1/2" (ISO 228-1) F | G 1/2" (ISO 228-1) F | 3 bar |
|
|
|
||
| 311435 | G 1/2" (ISO 228-1) F | G 1/2" (ISO 228-1) F | 3.5 bar |
|
|
|
||
| 311440 | G 1/2" (ISO 228-1) F | G 1/2" (ISO 228-1) F | 4 bar |
|
|
|
||
| 311450 | G 1/2" (ISO 228-1) F | G 1/2" (ISO 228-1) F | 5 bar |
|
|
|
||
|
2D drawings
3D models
 igs
分享
下载
 stp
分享
下载

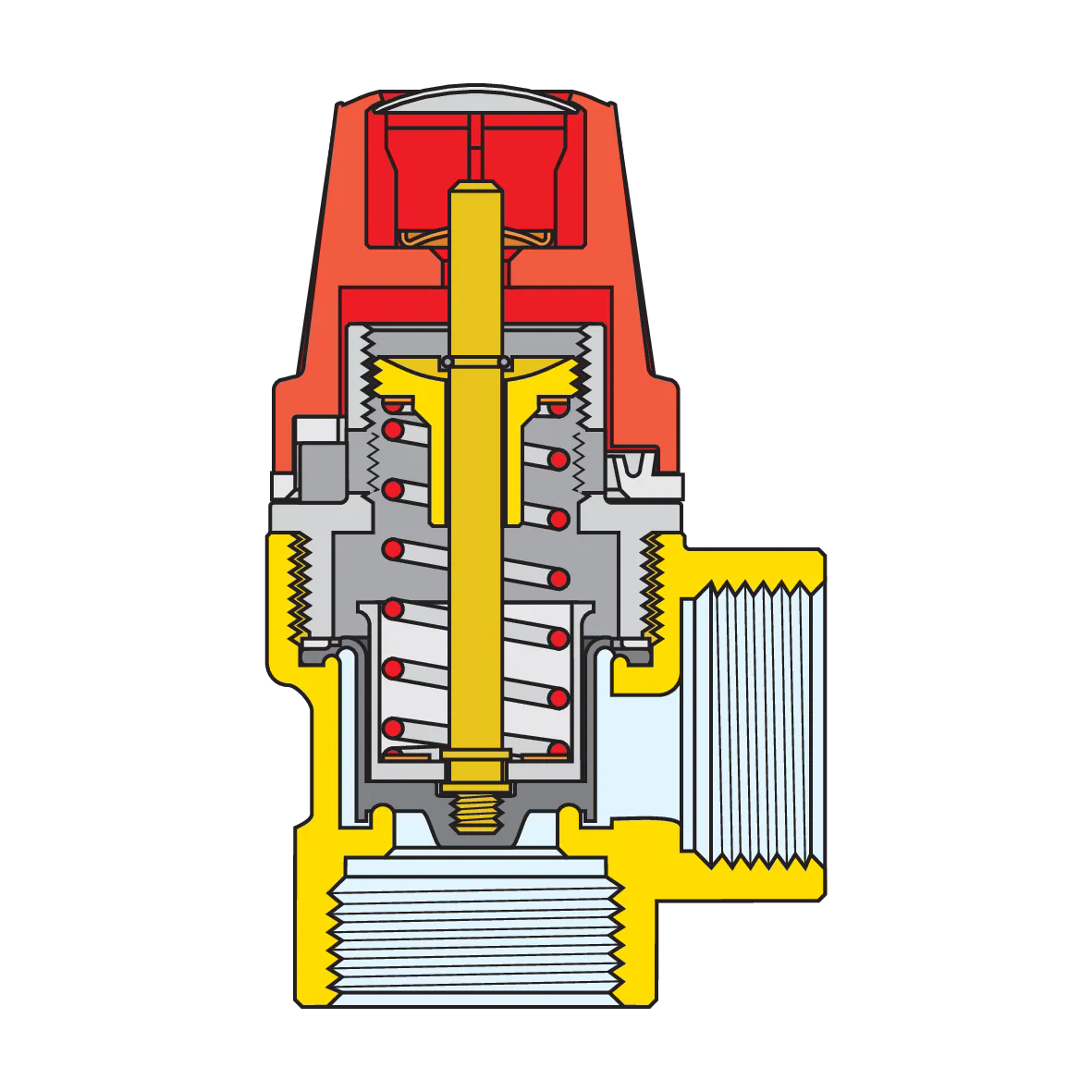

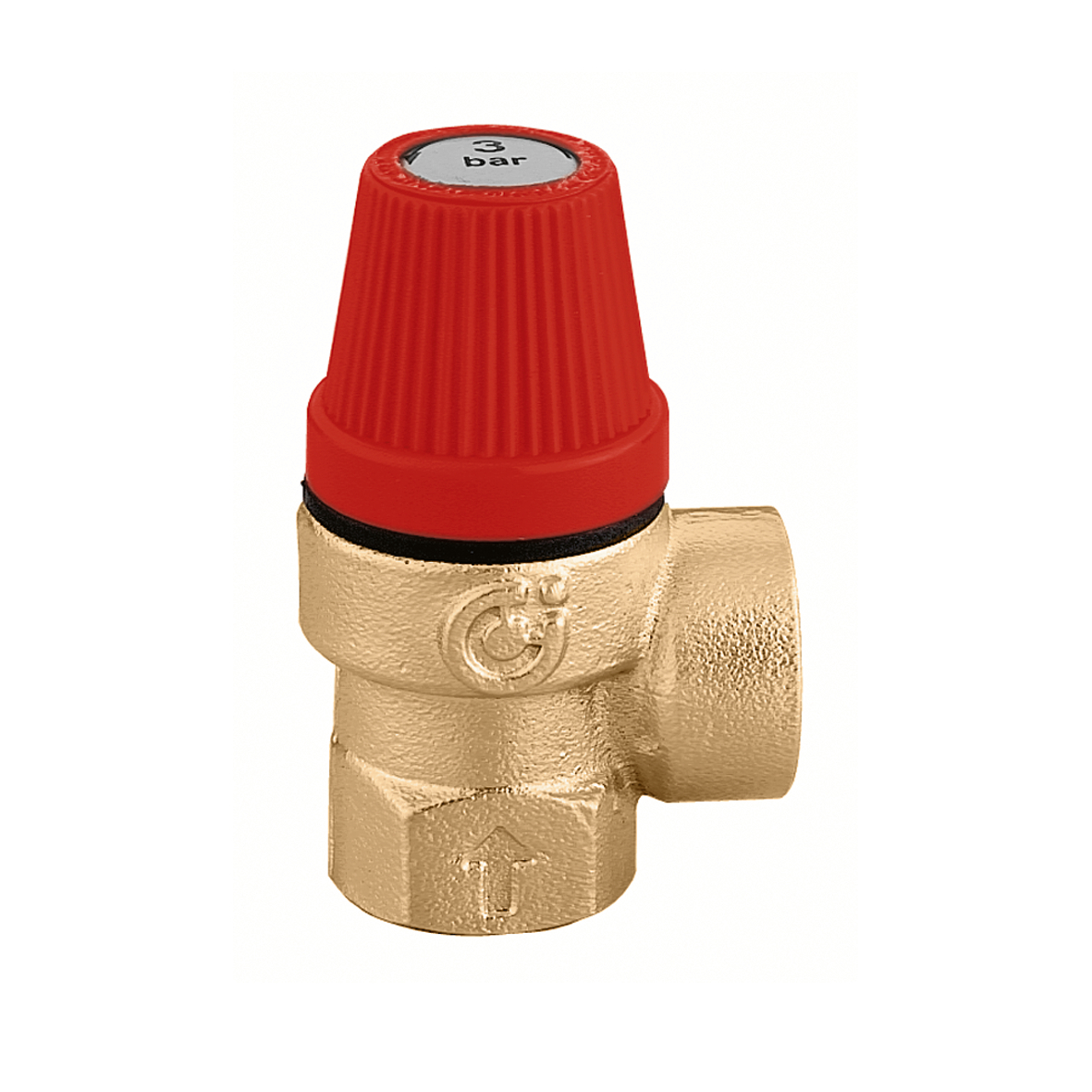

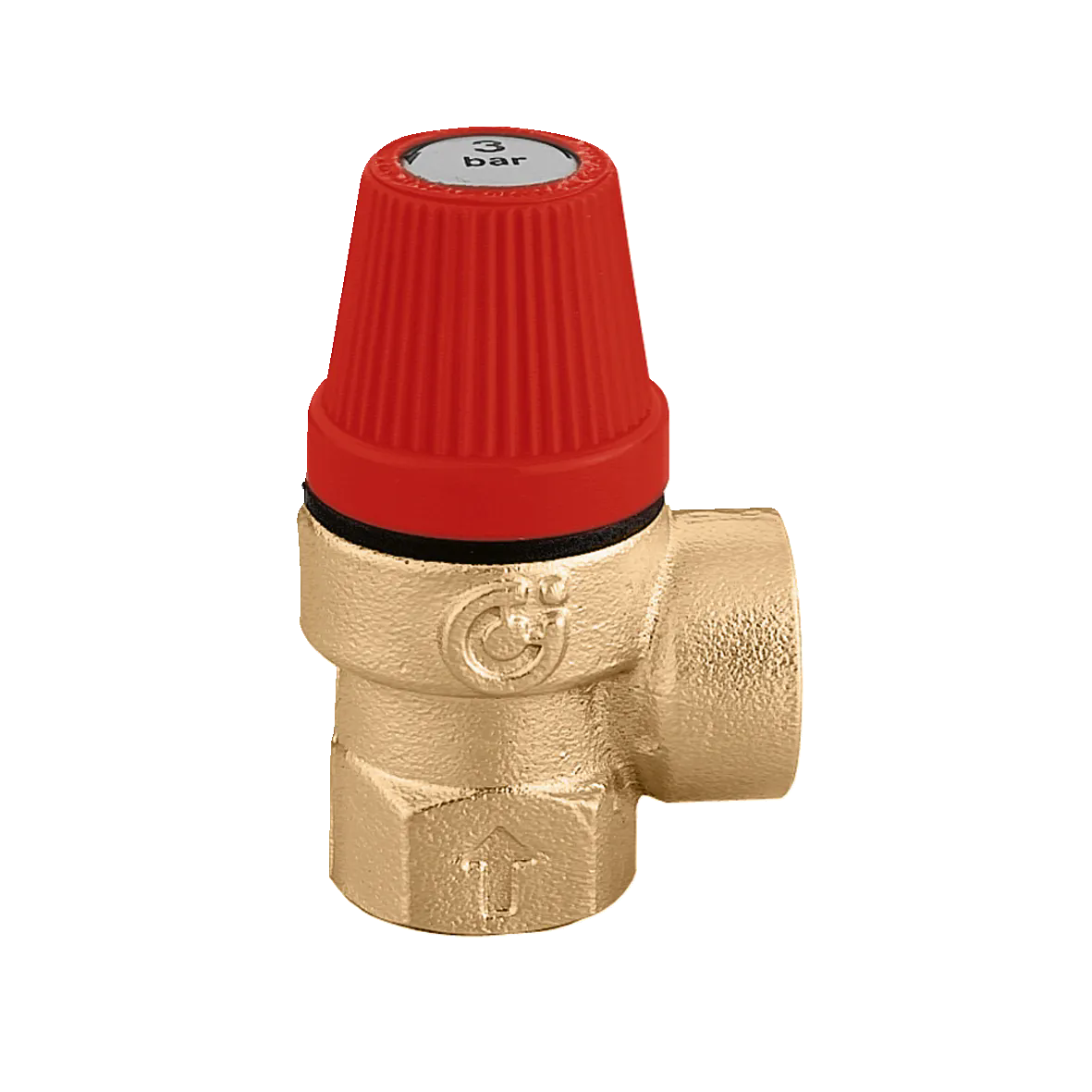

产品概述
卡莱菲，311450。普通安全阀。内螺连接。最大泄压压力：20% 。关闭压力：20%。口径：G 1/2" (ISO 228-1) F。泄水接口: G 1/2" (ISO 228-1) F。耐温: 5–110 °C。设定压力：5 bar。耐压: PN 10。
|
|||
| 311460 | G 1/2" (ISO 228-1) F | G 1/2" (ISO 228-1) F | 6 bar |
|
|
|
||
| 311470 | G 1/2" (ISO 228-1) F | G 1/2" (ISO 228-1) F | 7 bar |
|
|
|
||
| 311480 | G 1/2" (ISO 228-1) F | G 1/2" (ISO 228-1) F | 8 bar |
|
|
|
||
| 311520 | G 3/4" (ISO 228-1) F | G 3/4" (ISO 228-1) F | 2 bar |
|
|
|
||
| 311525 | G 3/4" (ISO 228-1) F | G 3/4" (ISO 228-1) F | 2.5 bar |
|
|
|
||
| 311530 | G 3/4" (ISO 228-1) F | G 3/4" (ISO 228-1) F | 3 bar |
|
|
|
||
| 311535 | G 3/4" (ISO 228-1) F | G 3/4" (ISO 228-1) F | 3.5 bar |
|
|
|
||
| 311540 | G 3/4" (ISO 228-1) F | G 3/4" (ISO 228-1) F | 4 bar |
|
|
|
||
| 311550 | G 3/4" (ISO 228-1) F | G 3/4" (ISO 228-1) F | 5 bar |
|
|
|
||
| 311555 | G 3/4" (ISO 228-1) F | G 3/4" (ISO 228-1) F | 5.5 bar |
|
|
|
||
| 311560 | G 3/4" (ISO 228-1) F | G 3/4" (ISO 228-1) F | 6 bar |
|
|
|
||
| 311570 | G 3/4" (ISO 228-1) F | G 3/4" (ISO 228-1) F | 7 bar |
|
|
|
||
| 311580 | G 3/4" (ISO 228-1) F | G 3/4" (ISO 228-1) F | 8 bar |
|
|
|
||
| 311590 | G 3/4" (ISO 228-1) F | G 3/4" (ISO 228-1) F | 9 bar |
|
|
|
||
